Typical operating conditions
- Filling and washdown lines
- Steam or hot-water utility switching
- Higher-flow process line control
Angle Seat Valves
Angle seat and piston valve options for higher-flow switching in water, steam and process lines.
Product Details
Angle Seat Valves Selection and RFQ
Higher-flow switching for water, steam, cleaning lines, filling equipment and process pipelines.
ThreadedFlangedPiston valveManual optionSteam / water
Product Visuals

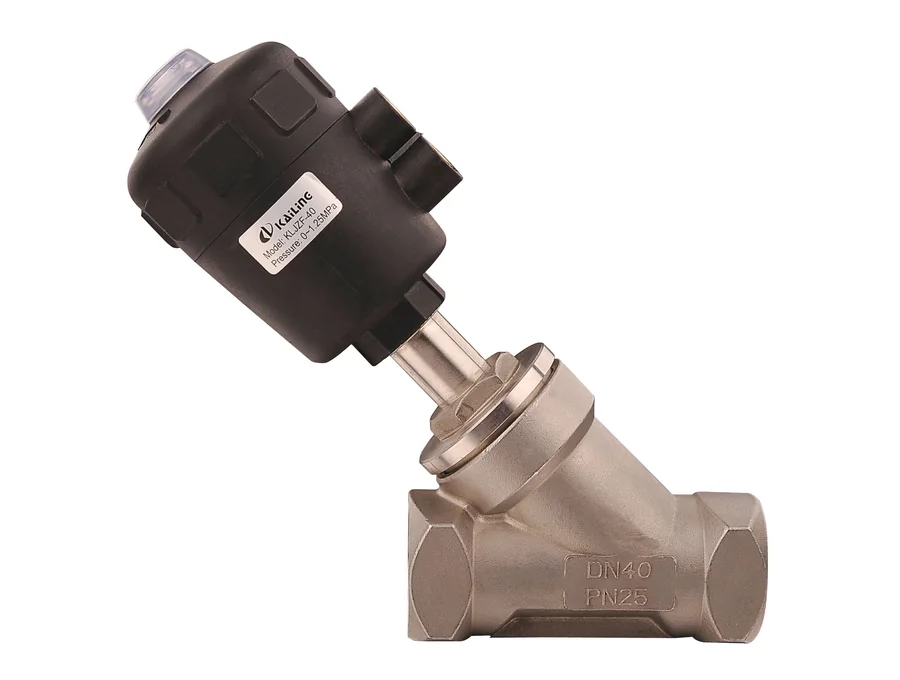

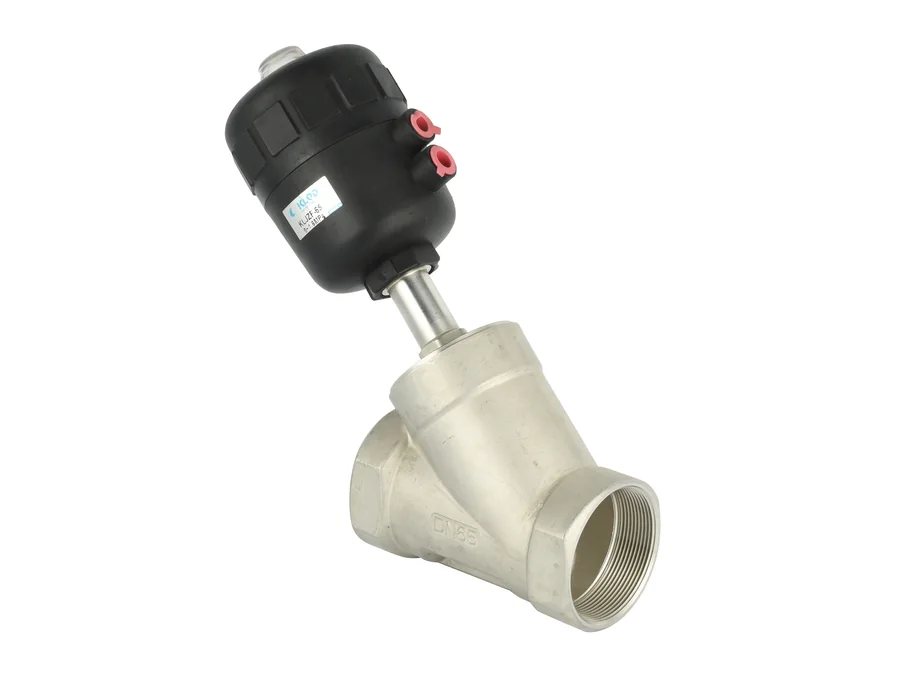

Angle Seat Valves designs and connections
Compare body designs, connections and actuation options, then check dimensions and operating conditions in the matching model documentation.
Technical Selection
Angle Seat Valves parameters and operating conditions
Use the details below for RFQ shortlisting. Final specifications should be confirmed by exact model, catalog page and application.
| Model / series | Threaded, flanged, piston valve, manual and pneumatic angle-seat configurations. |
|---|---|
| Media | Water, steam, cleaning fluids, compressed air and general process lines. |
| Materials and seals | Stainless steel or brass body options by series; PTFE, EPDM or high-temperature seals by medium. |
| Voltage / electrical items | Pneumatic actuation is primary; if solenoid pilot control is required, confirm DC 24 V or AC 110/220 V coil. |
| Pressure range | General review range: 0 to 1.6 MPa, depending on body, actuator size and medium. |
| Temperature range | General review range: -10 to 180 C when suitable high-temperature seals are selected. |
Common selection mistakes
- Do not treat every angle seat valve as steam-ready; confirm seal and body rating.
- Check flow direction and installation position before replacement.
- For CIP or cleaning lines, confirm medium concentration and temperature.
Downloads and documents
Use the category PDF or catalog page for shortlisting; for a formal quote, send model, quantity, medium, pressure, temperature, voltage, port, material and delivery timing.
Series selection
Match the KLJZF connection and operating conditions
Choose the connection first, then check the medium, temperature, differential pressure, flow direction and pneumatic air supply for that KLJZF variant. A shared family name does not mean all connections and seal packages have the same limits.
| Series and catalog | Selection starting point | Confirm before ordering |
|---|---|---|
| KLJZF threaded angle seat valve | Compact process piping with threaded connections. | Specify G, ZG or NPT thread, nominal diameter, body and seal materials, flow direction and air supply. |
| KLJZF flanged angle seat valve | Bolted pipeline connections requiring removal for maintenance. | Match the flange standard, bolt pattern, pressure rating and installation clearance. |
| KLJZF tri-clamp angle seat valve | Equipment using clamp connections for access and maintenance. | Confirm clamp dimensions, wetted materials and cleaning conditions. A clamp connection alone does not establish food-contact certification. |
Selection basis: the linked Kailing model pages provide the catalog specifications, dimensions and available product PDFs. Check the exact model and operating conditions before ordering.
Selection notes updated .
Related selection guides
Explore operating conditions by industry
Selection questions
What should buyers confirm before selecting Angle Seat Valves?
Start with the application and provide these details: Medium, pressure, temperature, port or flange, body material, actuator type, seal and target delivery.
Can Kailing match OEM or special requirements?
Send drawings, sample photos, port details, packaging, MOQ, target market and certificate needs for series-level review.
Related Products
Explore More Pneumatic Products
Select related products by application, port and system matching needs.
Solenoid Valves
Direct acting, pilot operated, normally closed, normally open, steam, stainless and plastic solenoid valve series.

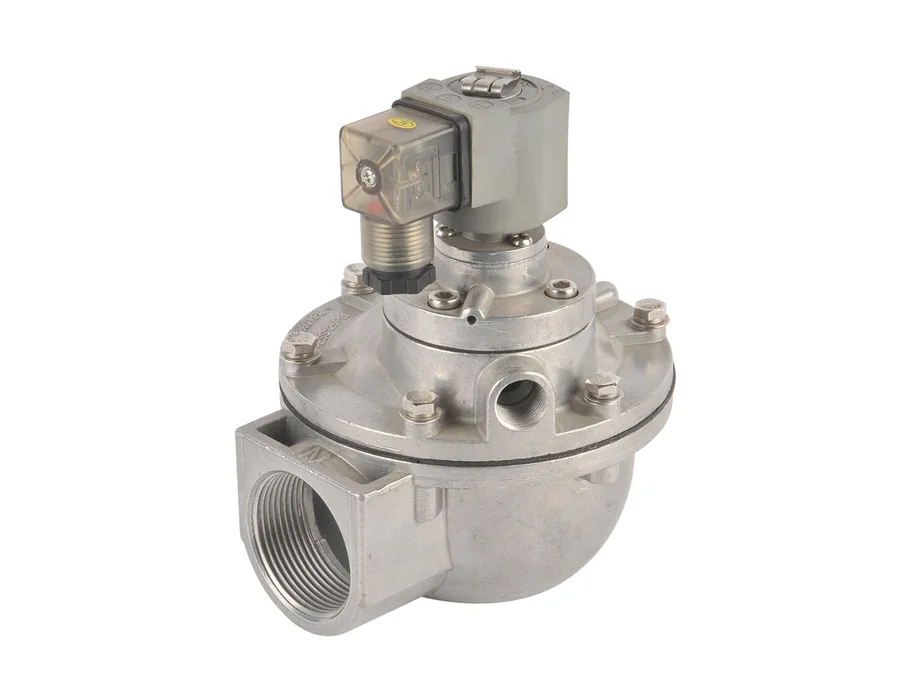

Pulse Valves
