Typical operating conditions
- Remote ball or butterfly valve operation
- Spring-return fail-safe switching
- Automated process valve packages

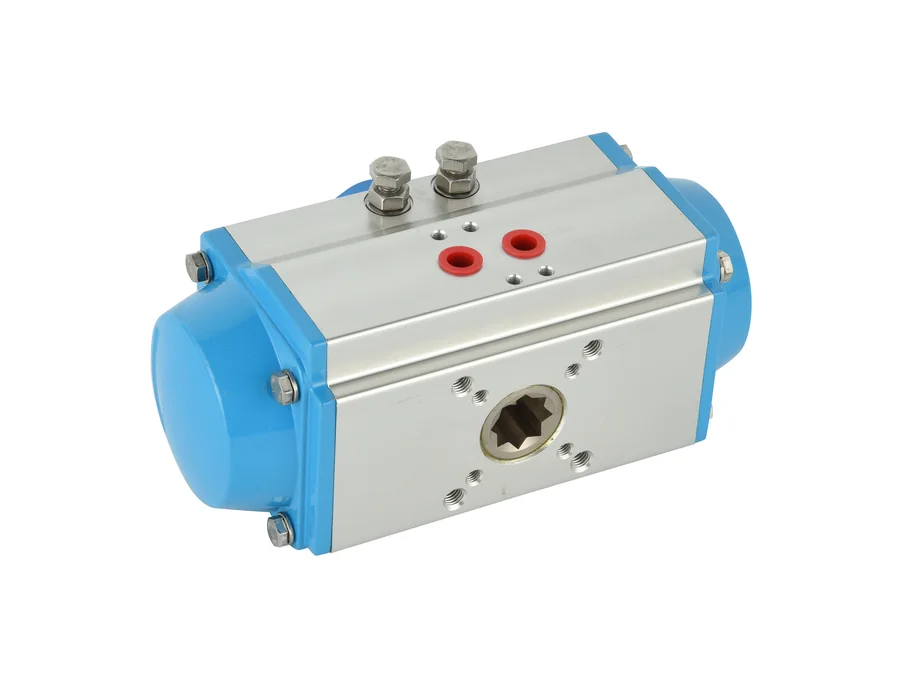

Pneumatic Actuators
Rack-and-pinion pneumatic actuators for quarter-turn ball valve and butterfly valve automation.
Product Details
Pneumatic Actuators Selection and RFQ
Quarter-turn automation for ball valves, butterfly valves and process valve assemblies.
AT seriesDouble actingSpring returnQuarter-turnAccessories
Product Visuals
Pneumatic Actuators designs and connections
Compare body designs, connections and actuation options, then check dimensions and operating conditions in the matching model documentation.
Technical Selection
Pneumatic Actuators parameters and operating conditions
Use the details below for RFQ shortlisting. Final specifications should be confirmed by exact model, catalog page and application.
| Model / series | AT series, double-acting, spring-return and quarter-turn actuator packages. |
|---|---|
| Media | Dry compressed air for valve automation. |
| Materials and seals | Aluminum actuator body with series-specific seals, bearings and mounting kits. |
| Voltage / electrical items | Actuator itself is pneumatic; limit switches, solenoid valves and positioners require separate voltage confirmation. |
| Pressure range | General control-air review range: 0.4 to 0.8 MPa. |
| Temperature range | General ambient review range: -20 to 80 C; special environments need accessory confirmation. |
Common selection mistakes
- Do not choose actuator size without valve torque and safety factor.
- Confirm ISO mounting pattern before matching accessories.
- Fail-open/fail-close logic must be specified before quoting spring-return units.
Downloads and documents
Use the category PDF or catalog page for shortlisting; for a formal quote, send model, quantity, medium, pressure, temperature, voltage, port, material and delivery timing.
Series selection
Compare double acting and spring return AT actuators
Select the required valve position on loss of air before choosing an actuator. AT-DA uses air in both directions; AT-SR adds a spring return. Size the actuator against the valve torque throughout the stroke at the available air pressure, then check mounting and accessories.
| Series and catalog | Selection starting point | Confirm before ordering |
|---|---|---|
| AT-DA double acting actuator | Rotary valve packages operated by air in both directions. | Confirm valve torque, sizing margin, minimum air pressure and mounting flange. Do not assume a defined return position on loss of air. |
| AT-SR spring return actuator | Valve packages requiring a specified spring-return position. | Specify fail-open or fail-closed arrangement, spring set and torque at both ends of the stroke. |
Selection basis: the linked Kailing model pages provide the catalog specifications, dimensions and available product PDFs. Check the exact model and operating conditions before ordering.
Selection notes updated .
Related selection guides
Explore operating conditions by industry
Selection questions
What should buyers confirm before selecting Pneumatic Actuators?
Start with the application and provide these details: Valve torque, working pressure, action type, rotation angle, mounting standard, accessory needs and quantity.
Can Kailing match OEM or special requirements?
Send drawings, sample photos, port details, packaging, MOQ, target market and certificate needs for series-level review.
