Typical operating conditions
- Clamping, pushing and lifting
- Packaging and conveyor motion
- Fixture and machine-side actuation
Pneumatic Cylinders
Standard, mini, compact and guided cylinder options for motion control and automation equipment.
Product Details
Pneumatic Cylinders Selection and RFQ
Linear motion for fixtures, conveyors, clamping, pushing, lifting and automation equipment.
SCSI / ISO6432DNCMA / MAL / DNSUSDA / TNGuided / compact

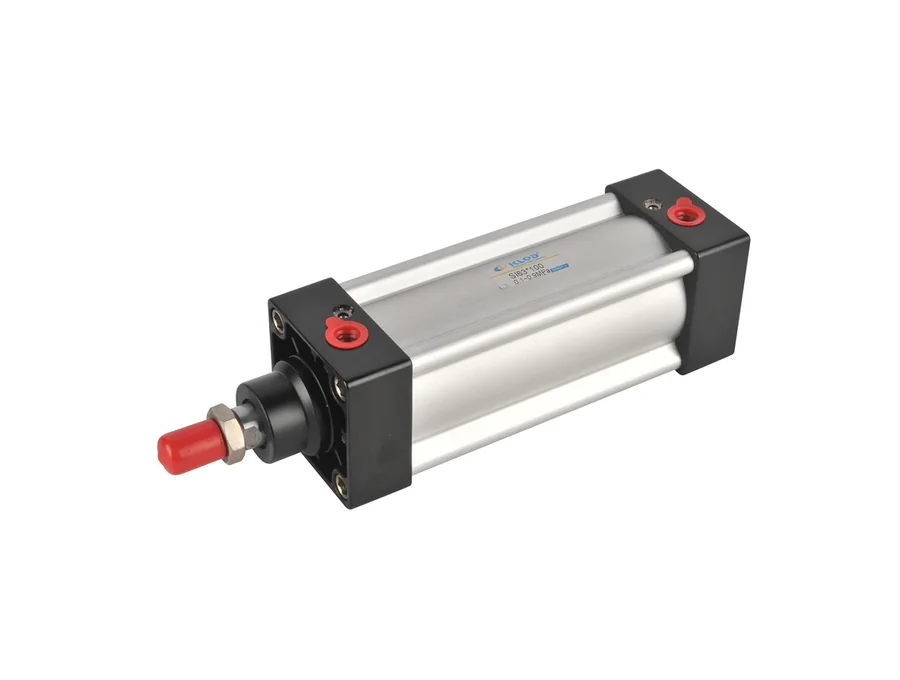

Product Visuals
Pneumatic Cylinders designs and connections
Compare body designs, connections and actuation options, then check dimensions and operating conditions in the matching model documentation.
Technical Selection
Pneumatic Cylinders parameters and operating conditions
Use the details below for RFQ shortlisting. Final specifications should be confirmed by exact model, catalog page and application.
| Model / series | SC, SI, DNC, MA, MAL, DNSU, SDA, TN, guided and compact cylinders. |
|---|---|
| Media | Filtered compressed air for linear motion. |
| Materials and seals | Aluminum cylinder body, steel or stainless rod, NBR or PU seals by series. |
| Voltage / electrical items | Cylinder is pneumatic; magnetic sensors or switches require separate voltage and connector confirmation. |
| Pressure range | General operating range: 0.1 to 1.0 MPa, depending on bore, stroke and load. |
| Temperature range | General ambient review range: -20 to 80 C. |
Common selection mistakes
- Do not choose bore without calculating load and available air pressure.
- Long strokes may need guide support or speed control.
- Confirm mounting accessories before replacement.
Downloads and documents
Use the category PDF or catalog page for shortlisting; for a formal quote, send model, quantity, medium, pressure, temperature, voltage, port, material and delivery timing.
Selection questions
What should buyers confirm before selecting Pneumatic Cylinders?
Start with the application and provide these details: Bore, stroke, mounting style, operating pressure, speed, sensor needs, quantity and delivery timing.
Can Kailing match OEM or special requirements?
Send drawings, sample photos, port details, packaging, MOQ, target market and certificate needs for series-level review.
